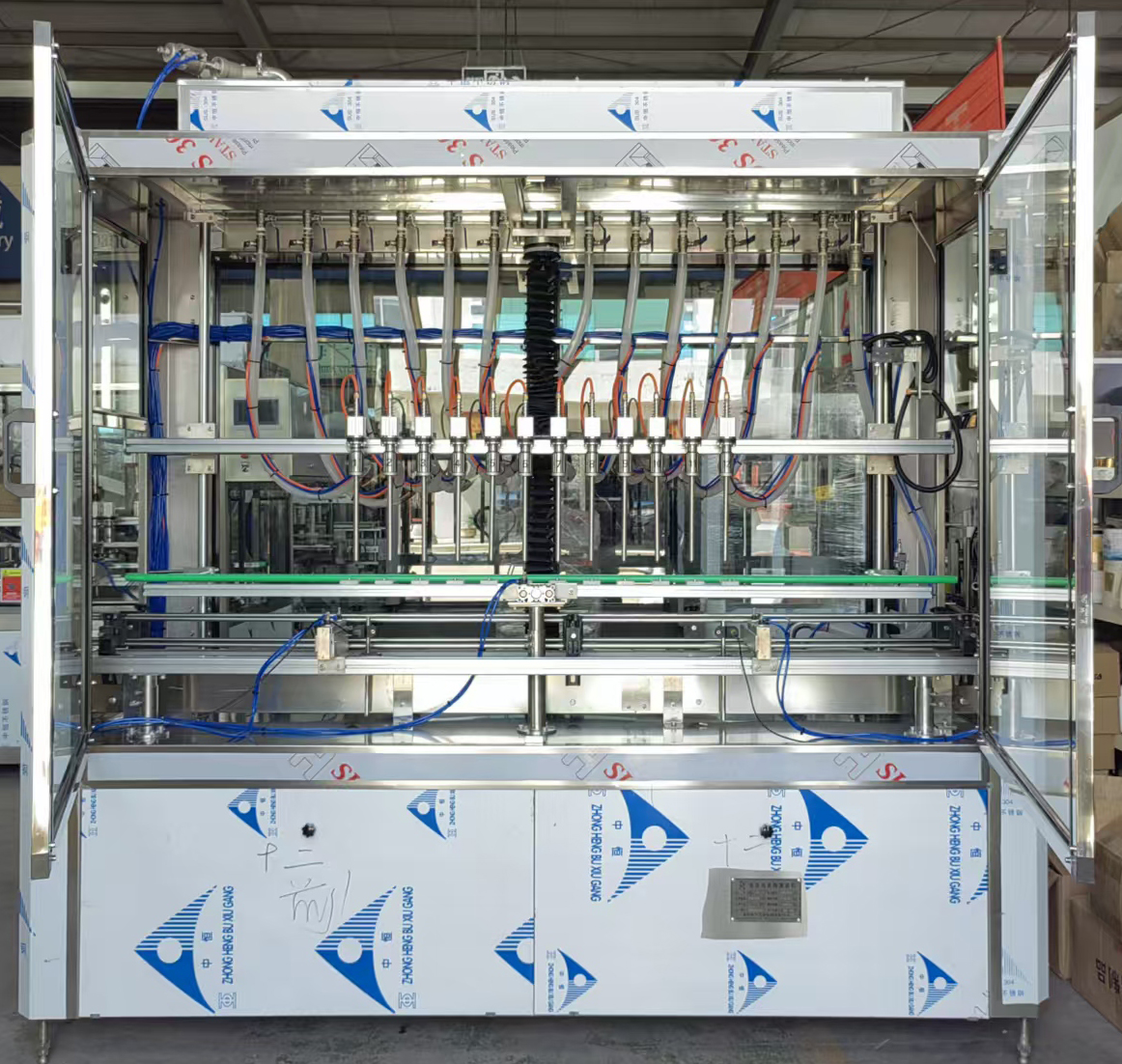

Engineered for versatile, high-speed, and ultra-precise filling. Equipped with diving anti-drip nozzles and intelligent servo-driven piston metering. Ideal for oils, daily chemicals, cosmetics, beverages, and liquid pharmaceuticals.
✓ Accuracy ≤ ±0.2%
Filling Accuracy
Nozzle Configurations
Total Power (380V)
Sanitary Contact Parts
Designed to handle high, medium, and low viscosity fluids without splashing, foaming, or product waste.
Servo-driven piston and cylinder dosing ensures every bottle receives an identical volume, drastically cutting ingredient giveaway and maintaining compliance.
Submersible filling heads dive to the container bottom and rise gradually during dispensing, effectively suppressing bubbles, foam, and liquid splashes.
Full-color touchscreen panel with multi-recipe memory. Adjust filling volume for all heads simultaneously in seconds with zero manual mechanical disassembly.
All liquid-contact parts are crafted from SUS304 / SUS316L stainless steel and food-grade silicone/PTFE seals. Fully compatible with CIP cleaning systems.
Flexible gating and bottle-neck positioning devices adapt to round, oval, flat, and square bottles without expensive changeover parts.
Advanced photoelectric detection: “No bottle – No fill”, “Bottle jam – Auto pause”, and automatic liquid buffer level control for continuous operation.
Select the optimal head count and configuration suited to your production batch requirements.
| Technical Parameter | 8-Head Model | 12-Head Model | 16-Head Model |
|---|---|---|---|
| Production Capacity (BPH) | 1,500 – 2,400 BPH | 2,500 – 3,600 BPH | 3,500 – 5,000 BPH |
| Filling Accuracy | ≤ ±0.2 % (High Precision Metering) | ||
| Filling Volume Range | 50ml – 1000ml / 500ml – 5000ml (Customizable) | ||
| Total Power Rating | 6.0 kW / 380V | ||
| Electrical Voltage | 380V 50Hz 3-Phase (Custom 220V/415V/480V, 50/60Hz Available) | ||
| Working Air Pressure | 0.6 – 0.8 MPa | ||
| Air Consumption | 0.4 – 0.5 m³/min | 0.6 – 0.7 m³/min | 0.8 – 1.0 m³/min |
| Applicable Bottle Height / Dia. | Height: 80–350 mm | Diameter: Ø30–150 mm (Customizable) | ||
| Machine Construction | SUS304 Frame + SUS316L Contact Parts + Safety Hood | ||
| Control System | PLC Touch Screen (English / Multi-Language Interface) | ||
Equipped with interchangeable piston sizes and seals for versatile chemical, food, and pharmaceutical applications.
Shampoo, liquid detergent, dish soap, liquid hand soap, disinfectant, fabric softener, hand sanitizer.
Cooking oil, edible vegetable oil, olive oil, syrup, soy sauce, vinegar, honey, fruit juice, beverage sauce.
Engine motor oil, brake fluid, lubricant, antifreeze, gear oil, diesel exhaust fluid (AdBlue).
Liquid pesticides, fertilizers, oral solutions, cosmetic lotions, serums, chemical reagents.
Seamlessly synchronizes with upstream and downstream packaging equipment into a fully automated line.
1
Automatic bottle sorting
2
8/12/16 Head dosing
3
Linear / Rotary capping
4
Foil cap leakage sealing
5
Round / Double side
6
Auto case packer & sealer
Have questions about machine customization, maintenance, or commissioning?
Tell us your liquid material, bottle volume, and target speed. Our engineering team will provide a tailored solution, layout drawing, and competitive pricing within 12 hours.
